Prostar UPS System

ET30K 3 phase online ups 30kva

 Prostar ET30K 3 phase double conversion long backup power supply ups 30kva is a high-performance digital UPS using the DSP control technology. The 3 phase 30kva ups  is connected between the mains and critical loads to supply high-quality power to the loads.



The 3-Phase 380/400/415V 20kVA 20kW On-Line Double-Conversion UPS with IGBT technology provides battery backup and AC power protection against power disturbances. It’s recommended for critical IT or corporate infrastructure, telecom, LAN/WAN, security and emergency, financial and light industrial applications.

Prostar ET-PLUS series design allows continuous operation at any supported voltage at either 50 or 60 Hz. Zero transfer time to battery mode ensures no disruption to the attached loads. Automatic and Manual Bypass keeps connected equipment powered even during overloads and UPS maintenance.

ET ups uninterruptible power supply 10kva - 120kva

ET30K 3 phase double conversion long backup power supply ups 30kva seamlessly links to your electrical network using state of the art electrical performances like very wide input voltage range, high overload and short circuit capacity, and integrated back feed protection, providing excellent power quality.

This IGBT UPS benefits from highly efficient transformer-free double-conversion technology that delivers operating cost savings. It achieves 93% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs.

UPS 30KVA Details

ET uninterruptible power supply UPS LCD Display

ET Series Online UPS  7-inch LCD Touch Screen

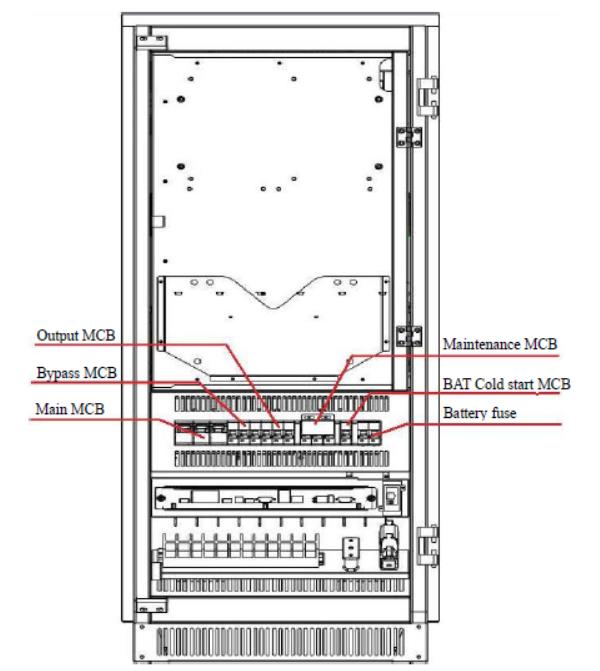

ET uninterruptible power supply UPS 10kva - 30kva front real

ET Series Online UPS  Front Panel

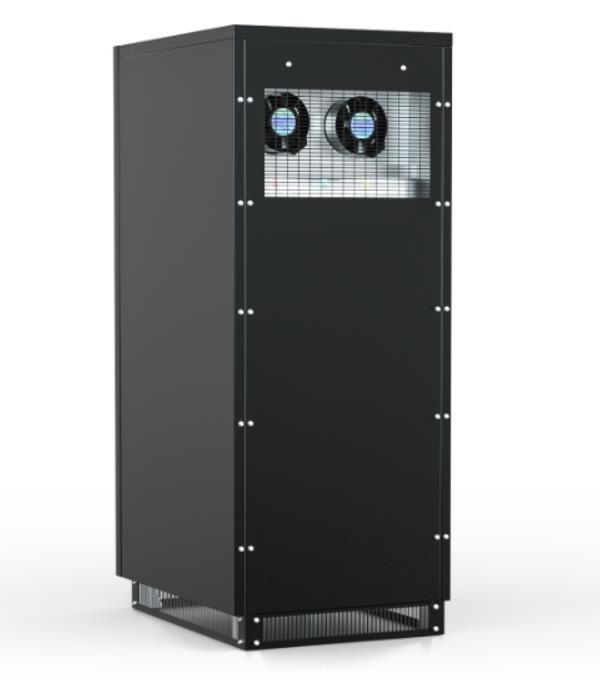

ET uninterruptible power supply UPS 10kva - 30kva real

3 Phase Online UPS  Rear Panel

ET uninterruptible power supply UPS communication interface

3 Phase Online UPS  Communication Interface

UPS 30KVA Specification

ModelET30K
Capacity30KVA/30KW
TopologyDouble conversion online
Noise<65dBA  front side 1M
Dimension(WxDxH mm)500x700x1300
Weight(Kgs)200
INPUT
Input Rated Voltage3P + N + PE, 380Vac/400Vac/415Vac(Default 380Vac)
Input Voltage Range304Vac - 456Vac
Input Rated Frequency50Hz/60Hz (Auto)
Input Frequency Range40Hz - 70Hz
Input Power Factor>0.95
Input Current Limit1.25 times Rated INPUT Current (Settable 0.1 - 1.25)
THDI< 3% full load
BYPASS INPUT
Bypass Input Voltage Range304Vac - 456Vac
Bypass Input Voltage RegulationUpper Limit: default 20% (Settable 10%/15%/20%/25%)
Lower Limit: default 20% (Settable 10%/20%/30%/40%/50%/60%)
OUTPUT
Output Rated Voltage3P + N + PE, 380Vac/400Vac/415Vac ± 1%
Output Voltage Regulation0V(Settable ±1V- ±5V)
Output FrequencyMains Mode: tracking BYPASS Input in synchronized state
Battery Mode: 50Hz/60Hz±0.01%
Output Power Factor1
Total Harmonic Distortion (THDU)< 2% at 100% linear load; < 5% at 100% non-linear load
Overload CapacitySupports up to 105% load continuously in double conversion; 105% - 110% load for 60 minutes switching to bypass output; 110% - 125% load for 10 minutes switching to bypass output; 125% - 150% load for 1 minute switching to bypass output; greater than 150% load for 200 milliseconds switching to bypass output
Crest Factor3:1
Wave FormPure sine wave
Transfer Time0ms
ECO MODE
Bypass Output Voltage RegulationUpper Limit: default 5% (Settable 5%/10%/15%)
Lower Limit: default 5% (Settable 5%/10%/15%)
Bypass Output Frequency RegulationDefault ±2Hz (Settable ±1Hz/±2Hz/±3Hz)
EFFICIENCY
Efficiency at full load (AC-AC)>93%
Efficiency at ECO Mode>98%
BATTERY
Battery TypeSupport VRLA Battery, (Lithium-ion Battery Option)
Battery VoltageDefault 360Vdc (Settable 336VDC/348VDC/372VDC/384VDC)
Battery Charging CurrentCharging Rate * Battery Capacity * Group of Battery (Settable for charging rate, battery capacity and group of battery)
SYSTEM
ProtectionOutput short circuit protection, output overload protection, over-temperature protection, low battery voltage protection, output overvoltage / undervoltage protection, fan failure protection
IP ProtectionIP30
Number of Parallel< 8 Units
Cooling MethodFans
Display7-inch LCD Touch Screen
Audible AlarmAudible and visible alarms prioritized by severity
ENVIRONMENT
Operating Temperature0℃ to 40℃ (32F-104F)
Humidity0~95% (non-condensing)
Altitude< 1000m (Capacity de-rates by 1% for every 100m over 1000m)
Storage Temperature-20℃ to 70℃
COMMUNICATION
Communication InterfaceDefault: RS232/RS485/USB/Dry Contact/EPO (Option: Battery Temperature Compensation)
Communication SlotSNMP/Web interface
