Prostar UPS System

PHT1110B-PRO 10kva networking ups

 Prostar PHT1110B-PRO single phase networking 10kva ups battery backup systems provides early-warning fault analysis on batteries enabling timely preventive maintenance. It can protect connected loads from surges, spikes, lightning, and other power disturbances.



When the power goes out, 10kva ups provides guaranteed power for computers, external hard-drives and other electronics, including your wireless router so you can maintain a network connection for your IoT devices when you need it most! Ideal for the home and home offices, the online ups offers plenty of power and outlets.

Between severe weather, the aging electrical grid and hazards lurking inside your own walls, your equipment is under constant attack from power problems. Even a brief loss of power or a momentary surge can ruin your equipment and destroy irreplaceable data. Prevent damage, downtime and data loss by installing 10kva ups systems. It conditions incoming AC power, provides enough battery backup to outlast most outages and automatically saves open files and shuts down computers gracefully during extended blackouts.

10kva ups battery backup systems

Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

10KVA UPS Features

  • VFI topology (online / double conversion) protection against all mains network problems
  • Output power factor 0.9
  • Microprocessor control optimizes reliablility
  • Sinewave UPS with Automatic Voltage Regulation (AVR), designed for high-end electronics. Ideal battery backup for computer
  • Wide frequency input range (40-70 Hz Auto Sensing) allows for Generator power to be used as a primary or secondary input power source
  • Extremely wide input voltage window of 110 VAC to 300 VAC
  • ECO and frequency operating voltage possibilities
  • Built-in battery inside
  • Expansion slot for SNMP, potential free contacts, remote display
  • Graphic LCD display with interactive multilingual user interface
  • Internal hardware data logger with plain text display and date / time stamp
  • Warns when a battery is not available to provide backup power
  • Periodic battery self-test ensures early detection of a battery that needs to be replaced

Computer UPS Details

10kva ups battery backup systems

Fig 1. Uninterruptible power supply front panel

10kva ups battery backup systems

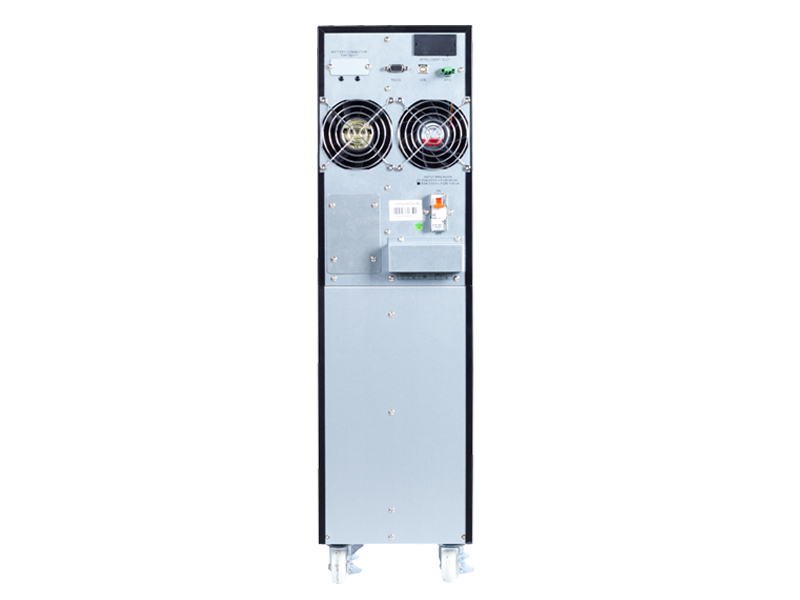

Fig 2. Uninterruptible power supply rear

10kva ups battery backup systems

Fig 3. Uninterruptible power supply built-in battery

10 kva ups Specification

MODELPHT1110B-PRO
CAPACITY10KVA / 9000W
Battery Voltage192V
Size, D X W X H (mm)442 X 190 X 688
Net Weight (kgs)66
INPUT
Norminal Voltage208/220/230/240VAC
Input Voltage Range120-300VAC (Based on load @50%)
180-300VAC (Based on load @100%)
Frequency Range46Hz ~ 54Hz or 56Hz ~ 64Hz
PhaseSingle Phase
Power Factor≧ 0.99 @ nominal voltage (input voltage)
OUTPUT
Output voltage208/220/230/240VAC
AC Voltage Regulation± 1% (Batt. Mode)
Frequency Range(Synchronized Range)47Hz ~ 53 Hz @ 50Hz or 57Hz ~ 63 Hz @ 60Hz
Frequency Range (Batt. Mode)50 Hz or 60Hz ± 0.5%
Overload105%~110%: UPS shuts down after 10 min at battery mode or transfer to bypass when the utility is normal
110%~130%: UPS shuts down after 1min at battery mode or transfer to bypass when the utility is normal
>130%:UPS shuts down after 3seconds at battery mode or transfer to bypass when the utility is normal
Current Crest Ratio3:1
Harmonic Distortion≦ 3 % THD (Linear Load);≦ 5% THD (Non-linear Load)
Transfer TimeAC Mode to Batt. Mode0 ms
Inverter to Bypass0 ms
Waveform (Batt. Mode)Pure Sine Wave
EFFICIENCY
AC Mode93%
Battery Mode91%
BATTERY
Battery TypeVRLA
Battery Numbers16 x 12V 9AH
Recharge Time4 hours recover to 90% capacity
Charging Current1A / 2A
Charging Voltage218.4VDC ± 1%
ENVIRONMENT
Operation Humidity20-90 % RH @ 0- 40°C (non-condensing)
Noise LevelLess than 50dBA @ 1 Meter
MANAGEMENT
Smart RS-232 or USBWindows® 2000/2003/XP/Vista/2008、Windows® 7/8、Linux、Unix、MAC
Optional SNMPPower management from SNMP manager and web browser
