Prostar MixSolar 48v pure sine wave 5kw hybrid solar inverter charger

Prostar MixSolar 48v pure sine wave 5kw hybrid solar inverter charger: Prostar MixSolar 48v pure sine wave 5kw hybrid solar inverter charger.

Prostar MixSolar 48v pure sine wave 5kw hybrid solar inverter charger is a flexible and intelligent hybrid inverter which utilizes solar power, AC utility, and battery power source to supply continuous power. It’s a simple and smart solar power storage system for home users to either store energy into battery and wait for night time usage or use for self-consumption first depending on demands. Priority for power source can be programmed and set up through smart software.
During night time or power failure, MixSolar 48v pure sine wave 5kw hybrid solar inverter charger will automatically extract power from battery. In this way, it will reduce the dependence on the utility.

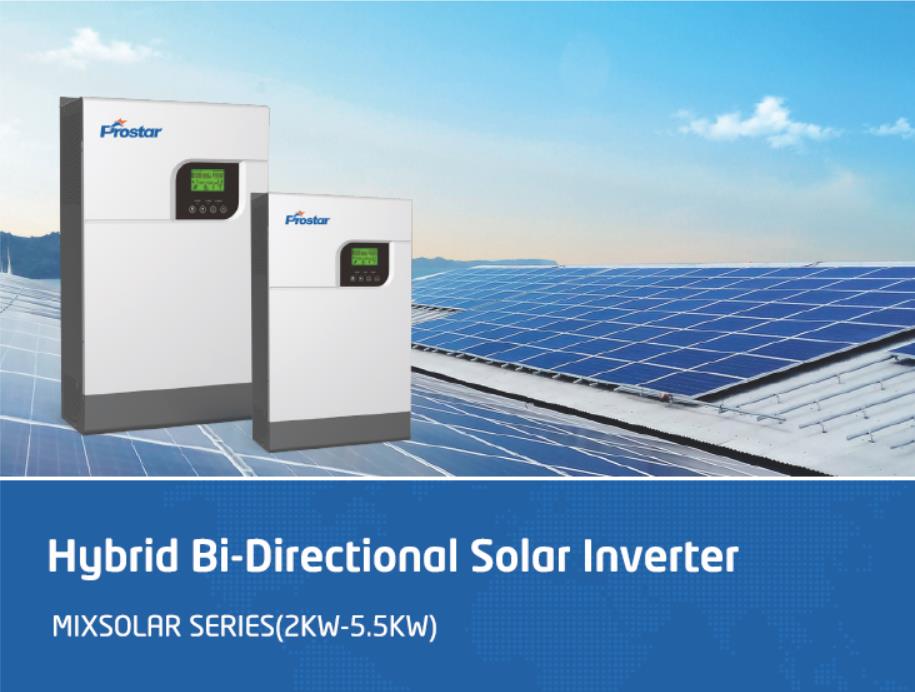

Prostar hybrid solar inverter
Ideal for grid-uncertain situations, Prostar MixSolar 48v pure sine wave 5kw hybrid solar inverter charger is primarily used for grid-tie (selling back to the utility company) purposes, but they can also provide backup power to your home when the electric utility fails. Customers often use hybrid inverter systems with solar panels to keep the power going during a blackout.

PV Inverter Feed-in is not only choice

In comparison with conventional grid-tie inverter, Prostar MixSolar 48v pure sine wave 5kw hybrid solar inverter charger is able to not only feed-in power to grid but also store solar power to battery for future usage and directly power to the loads.

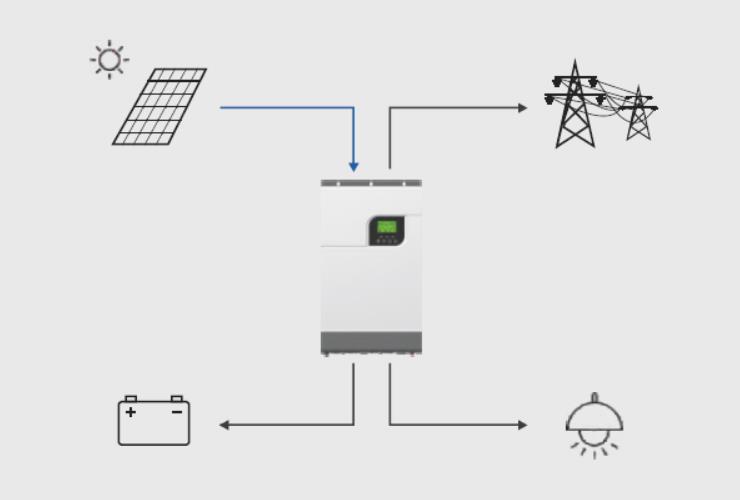

Hybrid Bi-directional PV Inverter Feed in Grid

Save money by discharging battery for self-consumption first

MixSolar hybrid Bi-directional pv inverter can save money by using battery energy first when PV energy is low. Until battery energy is low, will extract AC power from the grid.

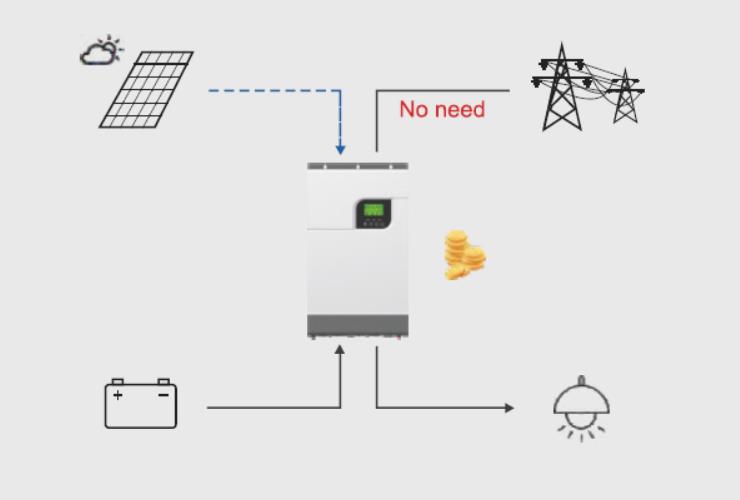

Hybrid Bi-directional PV Inverter with Battery Storage

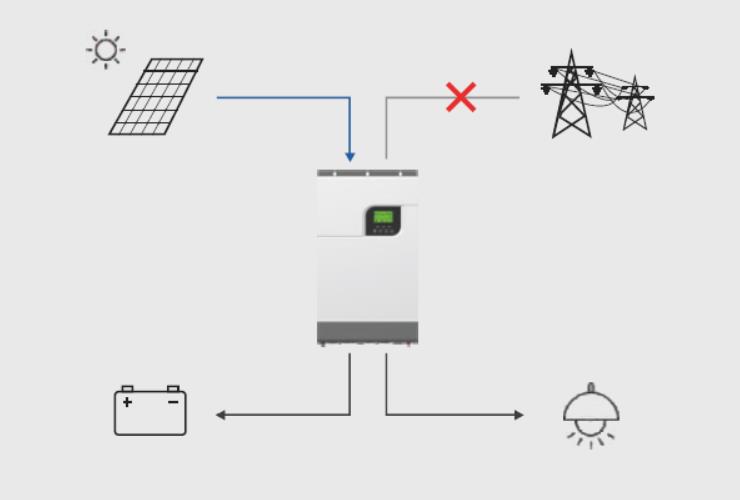

PV Inverter Power backup when AC failed

MixSolar hybrid Bi-directional pv inverter can operate as an of-grid inverter to provide continuous power even without the grid. It’s perfect power solution for remote regions or temporary AC power source such as camping or flea market.
Hybrid Bi-directional PV Inverter Power Backup

5KW Hybrid Solar Inverter Features & Benefits

  • Advanced DSP control technology delivers accurate data Pure sine wave output
  • Microprocessor controlled to guarantee stable charging system
  • Multiple operations: Grid tie, Off grid, and grid-tie with backup
  • Built-in MPPT solar charger
  • LCD display panel for comprehensive information
  • Multiple communication
  • Green substitution for generators
  • User-adjustable battery charging current
  • Self-consumption and Feed-in to the grid
  • Programmable supply priority for PV, Battery or Grid
  • Programmable multiple operations modes: Grid tie, Off grid, and grid-tie with backup
  • Built-in Timer for various mode of on/off operation
  • Multiple communication for USB, RS-232, Modbus and SNMP
  • Monitoring software for real time status display and control

Hybrid Solar Inverter Details

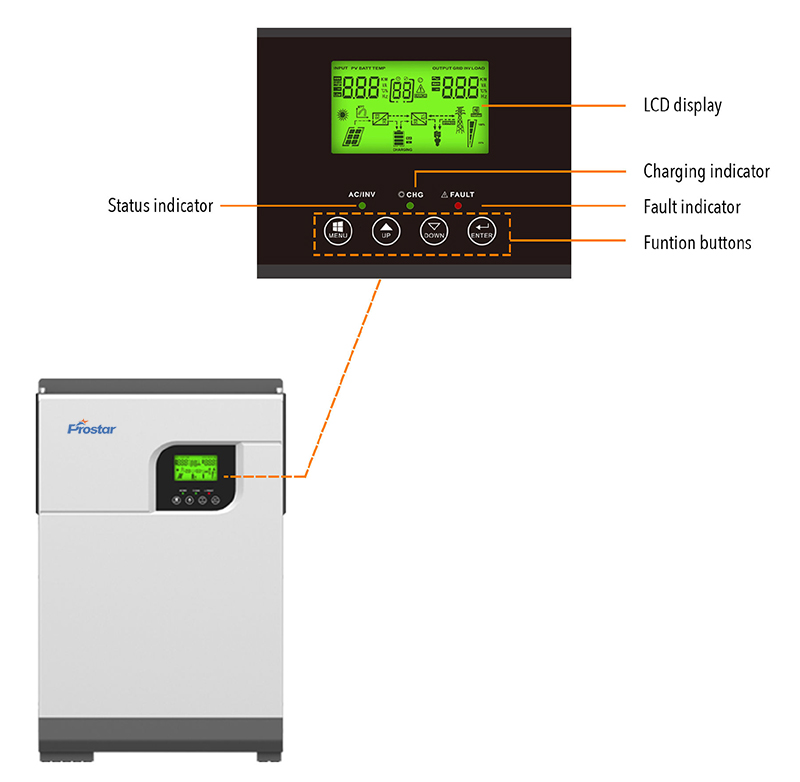

Hybrid Bi-directional PV Inverter LCD Display

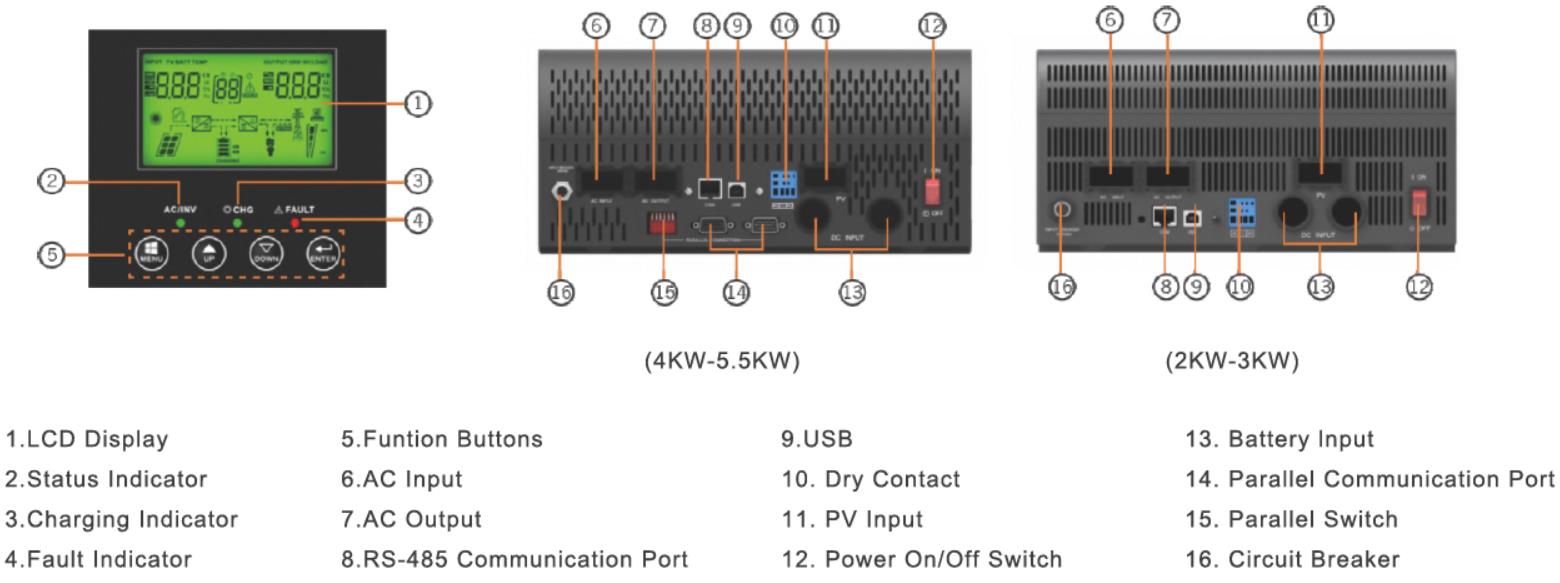

Hybrid Bi-directional PV Inverter Details

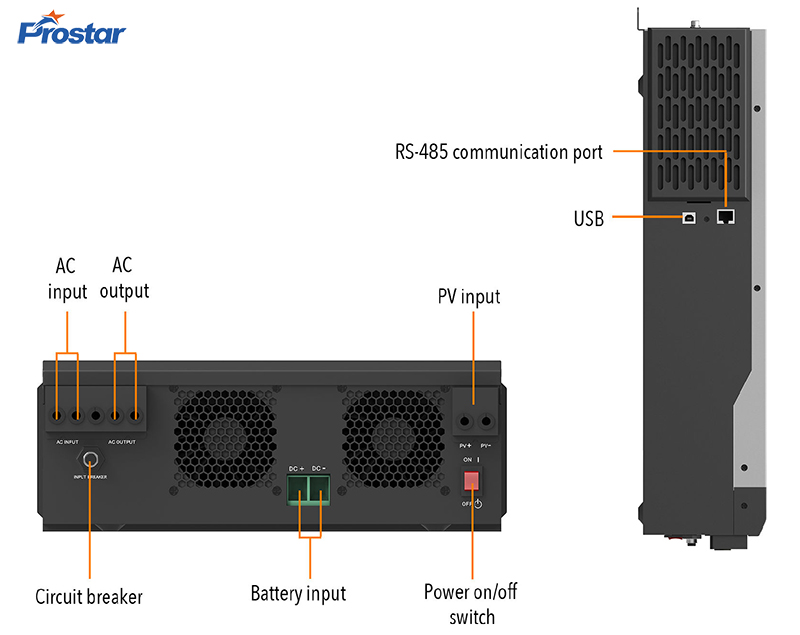

Hybrid Bi-directional PV Inverter 3KW-5.5KW Details

Hybrid Solar Inverter Battery Charging

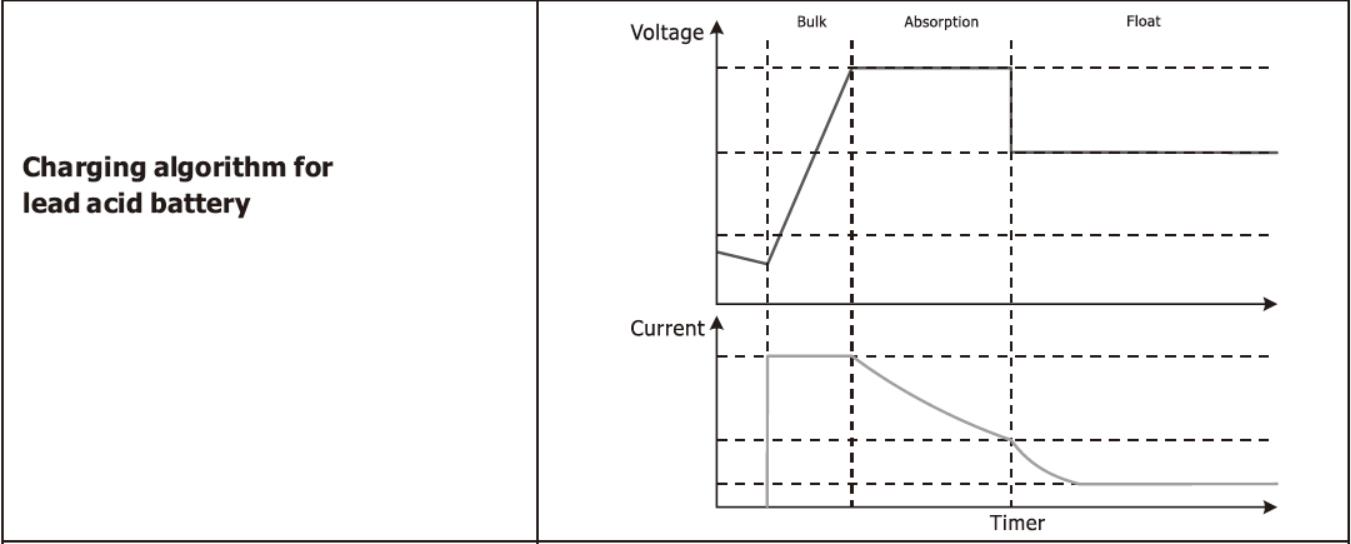

Hybrid Bi-directional PV Inverter Charging for Lead Acid Battery
3 Steps Charging for Lead Acid Battery

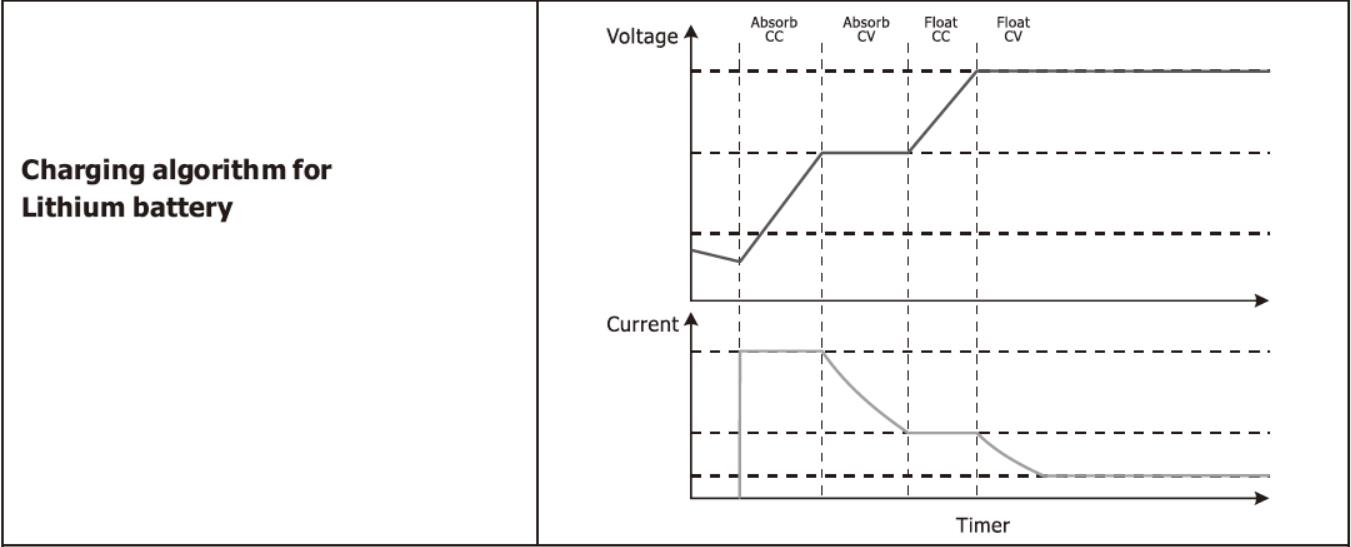

Hybrid Bi-directional PV Inverter Charging for Lithium Battery
4 Steps Charging for Lithium Battery

Hybrid Solar Inverter Parallel

The end users can make 2 units or 3 units hybrid solar inverters (capacity: 3KW – 5.5KW) to expand the output system capacity. Maximum 3 units can be parallel to single phase or three phase. Parallel function connection pictures are as below:

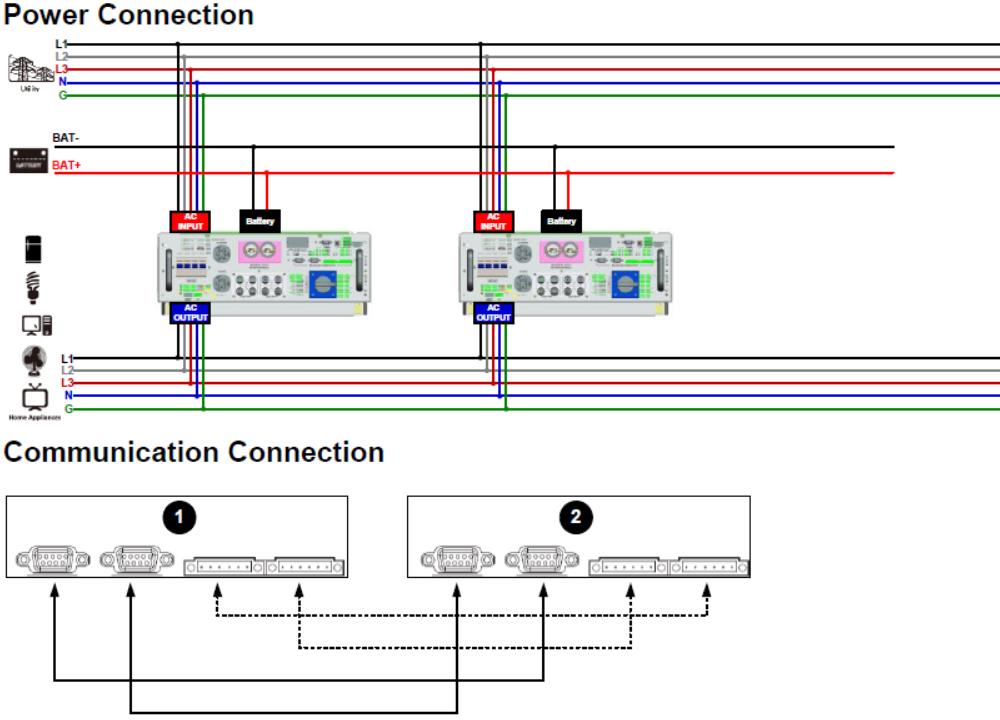

Hybrid Bi-directional PV Inverter Parallel 2 Units
 2 Units Hybrid Solar Inverter in Parallel Connection

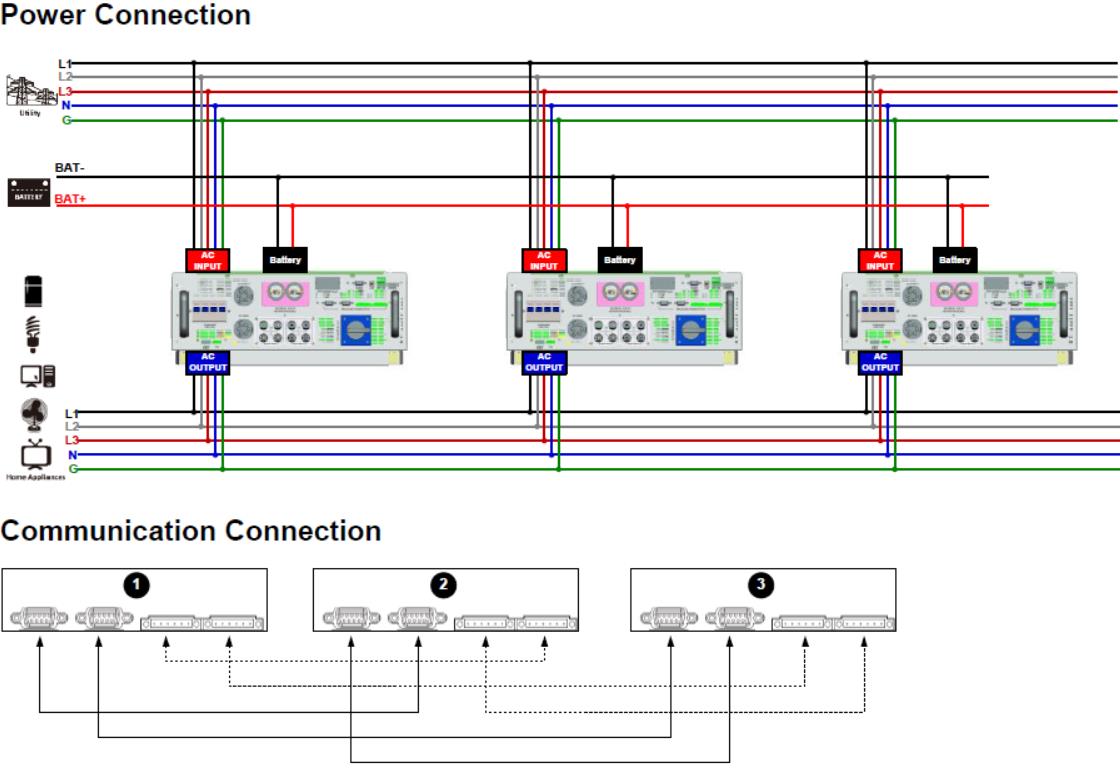

Hybrid Bi-directional PV Inverter Parallel 3 Units
 3 Units Hybrid Solar Inverter in Parallel Connection

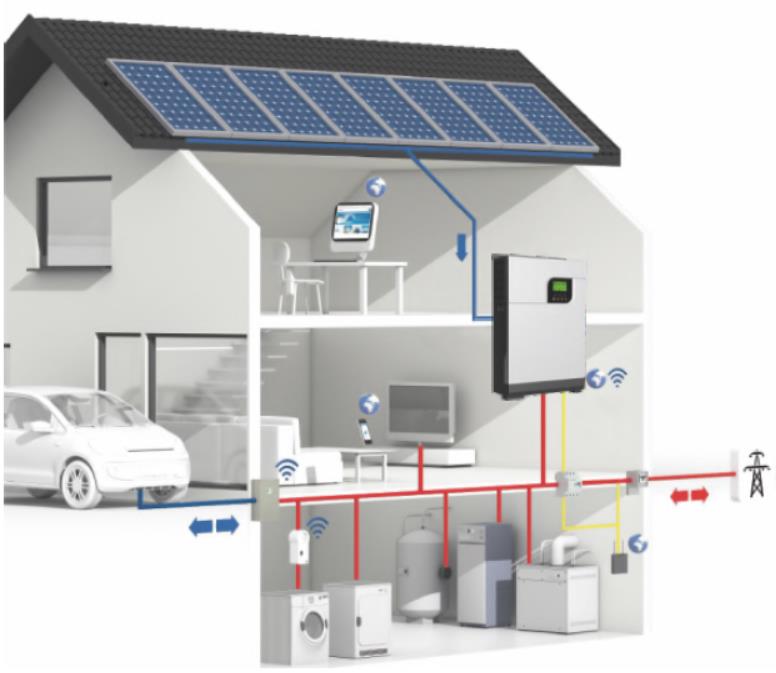

Hybrid Bi-directional PV Inverter Working

Hybrid Bi-directional PV Inverter Working
