Prostar PHT1103B-PRO computer backup battery 3kva online ups power supply provides premium battery backup and surge protection that are ideal for home or small office electronics, networking devices, gaming PCs and consoles. This ups provides sinewave output, increased runtime for your critical electronics.
When the power goes out, 3kva online ups provides guaranteed power for computers, external hard-drives and other electronics, including your wireless router so you can maintain a network connection for your IoT devices when you need it most! Ideal for the home and home offices, the online ups offers plenty of power and outlets.
Between severe weather, the aging electrical grid and hazards lurking inside your own walls, your equipment is under constant attack from power problems. Even a brief loss of power or a momentary surge can ruin your equipment and destroy irreplaceable data. Prevent damage, downtime and data loss by installing 3kva online ups power supply. It conditions incoming AC power, provides enough battery backup to outlast most outages and automatically saves open files and shuts down computers gracefully during extended blackouts.
Don’t let the game end when the power goes out. Backup battery power keeps gaming consoles, stereos, and chargers running. PHT1103B-PRO computer backup battery 3kva online ups power supply protects sensitive televisions, projectors, satellites, and cable boxes from power surges and spikes.
3KVA Online UPS Features
- VFI topology (online / double conversion) protection against all mains network problems
- Output power factor 0.9
- Microprocessor control optimizes reliablility
- Sinewave UPS with Automatic Voltage Regulation (AVR), designed for high-end electronics. Ideal battery backup for computer
- Wide frequency input range (40-70 Hz Auto Sensing) allows for Generator power to be used as a primary or secondary input power source
- Extremely wide input voltage window of 110 VAC to 300 VAC
- ECO and frequency operating voltage possibilities
- Built-in battery inside
- Expansion slot for SNMP, potential free contacts, remote display
- Graphic LCD display with interactive multilingual user interface
- Internal hardware data logger with plain text display and date / time stamp
- Provides early-warning fault analysis ensuring proactive component replacement
Computer UPS Details

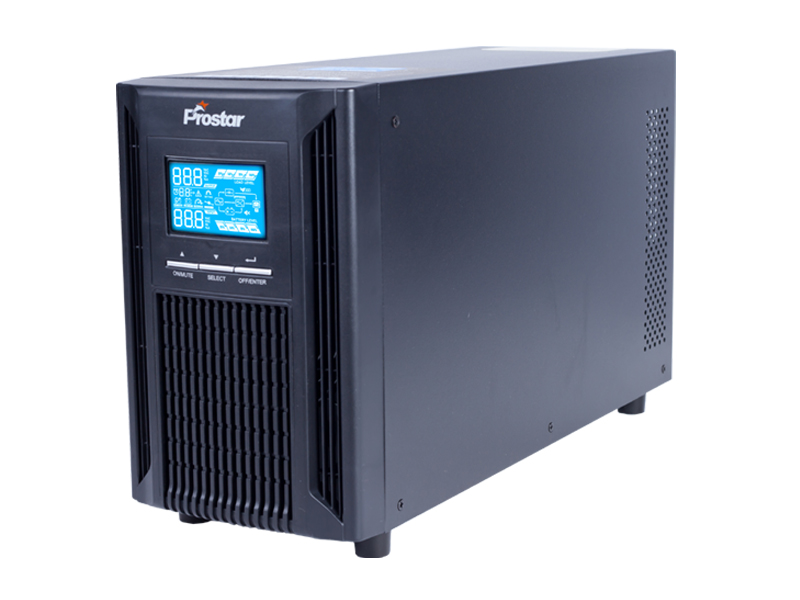

Fig 1. Uninterruptible power supply front panel

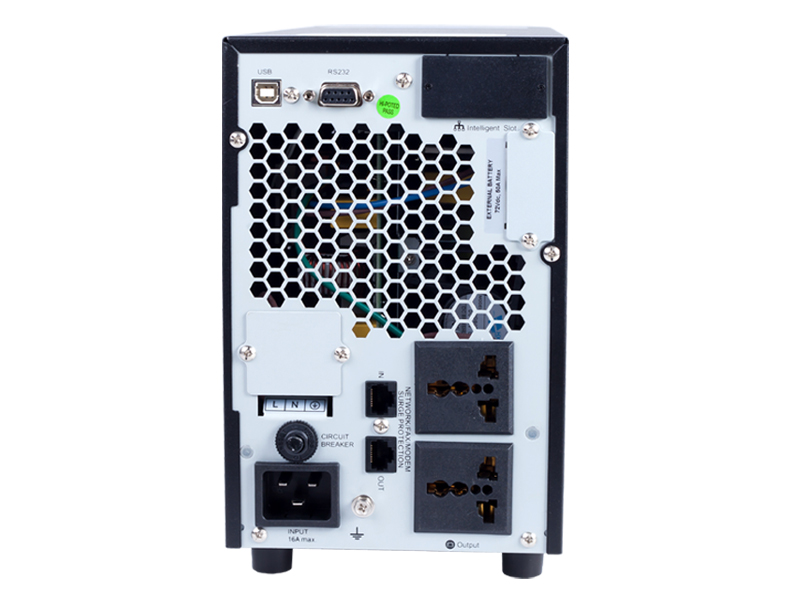

Fig 2. Uninterruptible power supply rear

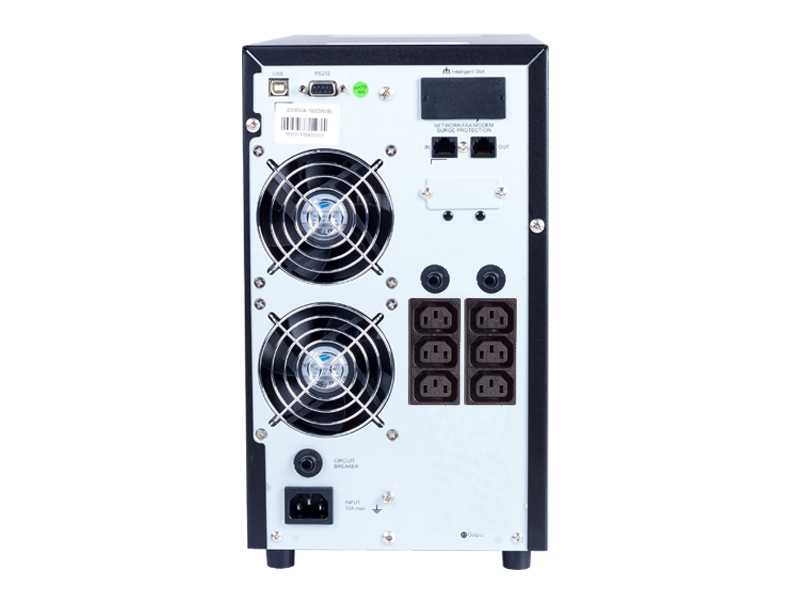

Fig 3. Uninterruptible power supply IEC rear
3KVA UPS Specification
| MODEL | PHT1103B-PRO | |
| CAPACITY | 3000VA / 2700W | |
| Battery Voltage | 72V | |
| Size, D X W X H (mm) | 421 X 190 X 318 | |
| Net Weight (kgs) | 27.6 | |
| INPUT | ||
| Norminal Voltage | 208/220/230/240VAC | |
| Input Voltage Range | 120-300VAC (Based on load @50%) 180-300VAC (Based on load @100%) | |
| Frequency Range | 40Hz ~ 70 Hz | |
| Phase | Single Phase | |
| Power Factor | ≧ 0.99 @ nominal voltage (input voltage) | |
| OUTPUT | ||
| Output voltage | 208/220/230/240VAC | |
| AC Voltage Regulation | ± 1% (Batt. Mode) | |
| Frequency Range(Synchronized Range) | 47Hz ~ 53 Hz @ 50Hz or 57Hz ~ 63 Hz @ 60Hz | |
| Frequency Range (Batt. Mode) | 50 Hz or 60Hz ± 0.5% | |
| Overload | 105%~110%: UPS shuts down after 10 min at battery mode or transfer to bypass when the utility is normal 110%~130%: UPS shuts down after 1min at battery mode or transfer to bypass when the utility is normal >130%:UPS shuts down after 3seconds at battery mode or transfer to bypass when the utility is normal | |
| Current Crest Ratio | 3:1 | |
| Harmonic Distortion | ≦ 3 % THD (Linear Load);≦ 5% THD (Non-linear Load) | |
| Transfer Time | AC Mode to Batt. Mode | 0 ms |
| Inverter to Bypass | 4 ms | |
| Waveform (Batt. Mode) | Pure Sine Wave | |
| EFFICIENCY | ||
| AC Mode | 89% | |
| Battery Mode | 87% | |
| BATTERY | ||
| Battery Type | VRLA | |
| Battery Numbers | 6 x 12V 9AH | |
| Recharge Time | 4 hours recover to 90% capacity | |
| Charging Current | 1A | |
| Charging Voltage | 82.1VDC ± 1% | |
| ENVIRONMENT | ||
| Operation Humidity | 20-90 % RH @ 0- 40°C (non-condensing) | |
| Noise Level | Less than 50dBA @ 1 Meter | |
| MANAGEMENT | ||
| Smart RS-232 or USB | Windows® 2000/2003/XP/Vista/2008、Windows® 7/8、Linux、Unix、MAC | |
| Optional SNMP | Power management from SNMP manager and web browser | |
