Prostar PIS3K-24 VMII 500V PV input 24v 3000w power inverter off grid is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size.
With an integrate battery charger and advanced microprocessor that allows for easy digital control implementation, PIS3K-24 VMII 500V PV input 24v 3000w power inverter provides reliable power conversion in a compact but robust unit.
PIS3K-24 VMII 500V PV input 24v 3000w power inverter transformerless design provides reliable power conversion in compact size. Besides, it’s worry-free to start up motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TV’s, Computers, power tool and battery chargers.
3000W Power Inverter Features & Benefits
1. Pure sine wave inverter
2. Built-in 80A MPPT solar charge controller
3. Selectable input voltage range for home appliances and personal computers
4. Selectable charging current
5. High PV input voltage range(120V dc -500Vdc)
6. Configurable AC/solar input priority via LCD setting
7. Compatible to mains voltage or generator power
8. Auto restart while AC is recovering
9. Overload and short circuit protection
10. Smart battery charger design for optimized battery performance and extend battery lifecycle
11. Cold start function
12. Surges to 2X continuous power for 5 seconds for motor loads
13. Wide utility input range (90V ac ~280Vac) for unreliable grid even in the most challenging environments
14. Air-Filter protects the inverter from dust for harsh environment
15. Can work with battery when there is sunshine or AC input
16. Support USB, RS485 monitoring function with free CD
2. Built-in 80A MPPT solar charge controller
3. Selectable input voltage range for home appliances and personal computers
4. Selectable charging current
5. High PV input voltage range(120V dc -500Vdc)
6. Configurable AC/solar input priority via LCD setting
7. Compatible to mains voltage or generator power
8. Auto restart while AC is recovering
9. Overload and short circuit protection
10. Smart battery charger design for optimized battery performance and extend battery lifecycle
11. Cold start function
12. Surges to 2X continuous power for 5 seconds for motor loads
13. Wide utility input range (90V ac ~280Vac) for unreliable grid even in the most challenging environments
14. Air-Filter protects the inverter from dust for harsh environment
15. Can work with battery when there is sunshine or AC input
16. Support USB, RS485 monitoring function with free CD
Solar System Basic Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
– – Generator or Utility.
– – PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
Specification
| Model | PIS3K-24 VMII |
| PHASE | 1-phase in/1-phase out |
| RATED POWER | 3000VA/3000W |
| Dimension DxWxH (mm) | 100x300x440 |
| Net Weight (kgs) | 9 |
| INPUT | |
| Voltage | 220VAC/ 230VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) |
| 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 220VAC / 230VAC ± 5% |
| Surge Power | 6000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY & AC CHARGER | |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Power | 4000W |
| MPPT Range @ Operating Voltage | 120VDC ~ 450VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Solar Charge Current | 80A |
| Maximum AC Charge Current | 60A |
| Maximum Charge Current | 80A |
| Maximum Efficiency | 98% |
| SYSTEM | |
| Communication Interface | USB, RS232 |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Product specifications are subject to change without further notice. | |
Solar Inverter Details
Inverter LCD Display
Inverter Rear Panel

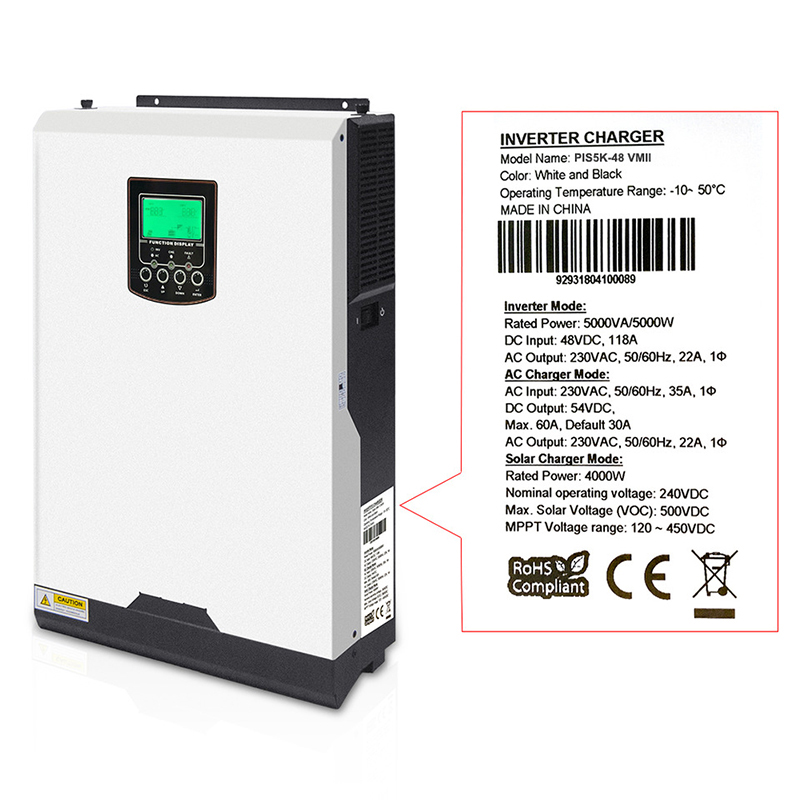

Inverter Label Information
Extend the life of your batteries with EQUALIZATION
Equalization function is used for refreshing the capacity of the battery. It reverses the build up of negative chemical effects like stratification, a condition where acid concentration is greateer at the bottom of battery than at the top. Equalization also helps to remove sulfate crystals that might have built up on the plates. If left unchecked, this condition called sulfation, will reduce the overall capacity (Ah) of the battery. It is recommended to equalize the batteries periodically (at least once per year).
Operating Conditions of 3000W Power Inverter
1. Mode of Operation WITH Battery Bank
2. Mode of Operation WITHOUT Battery Bank
