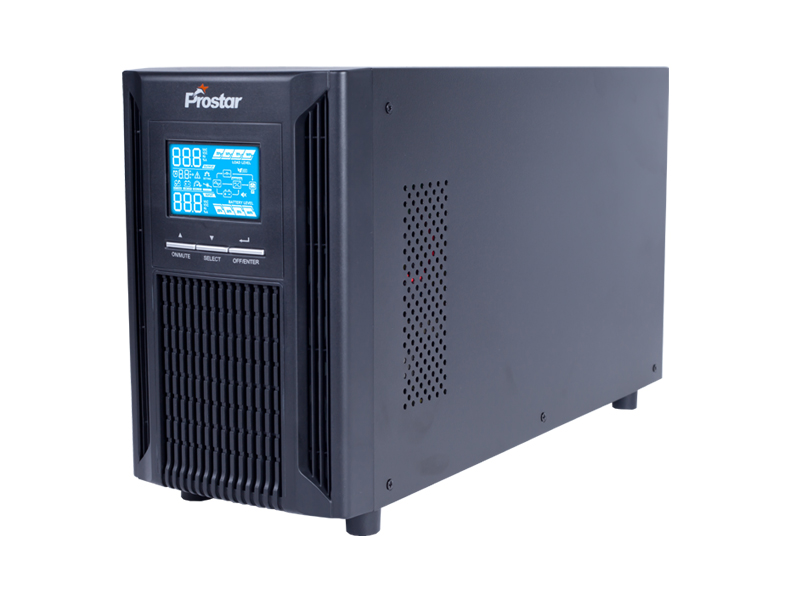

Prostar PHT1101B-PRO 24v double conversion online ups 1kva inbuilt battery is designed to eliminate disturbances to workstations, POSs, ATMs or home appliances. For longer backup time requirements you can add an external battery pack to enhance availability for critical applications.
When the power goes out, online ups 1kva provides guaranteed power for computers, external hard-drives and other electronics, including your wireless router so you can maintain a network connection for your IoT devices when you need it most! Ideal for the home and home offices, the online ups offers plenty of power and outlets.
PHT1101B-PRO 24v double conversion online ups 1kva inbuilt battery can offer enough time for you to save documents and gracefully shut down your computer without the harsh impact on your electronics of a sudden power loss.
Prostar PHT1101B-PRO 24v double conversion online ups 1kva inbuilt battery also has USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
Online UPS 1kva Features
- VFI topology (online / double conversion) protection against all mains network problems
- Output power factor 0.9
- Microprocessor control optimizes reliablility
- Input power factor correction
- Wide frequency input range (40-70 Hz Auto Sensing) allows for Generator power to be used as a primary or secondary input power source
- Extremely wide input voltage window of 110 VAC to 300 VAC
- ECO and frequency operating voltage possibilities
- Built-in battery inside
- Expansion slot for SNMP, potential free contacts, remote display
- Graphic LCD display with interactive multilingual user interface
- Internal hardware data logger with plain text display and date / time stamp
- Emergency power off (EPO) on terminal block
- Provides early-warning fault analysis ensuring proactive component replacement
Computer UPS Details

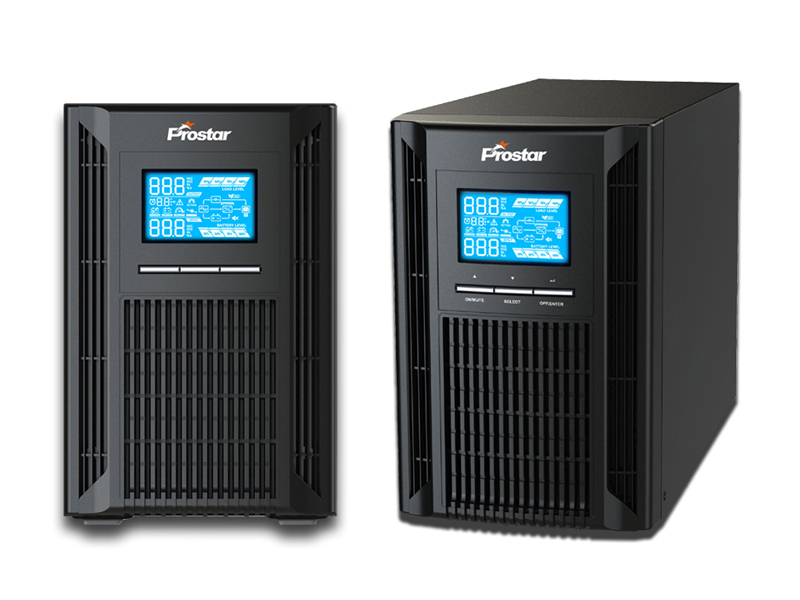

Fig 1. Uninterruptible power supply front panel

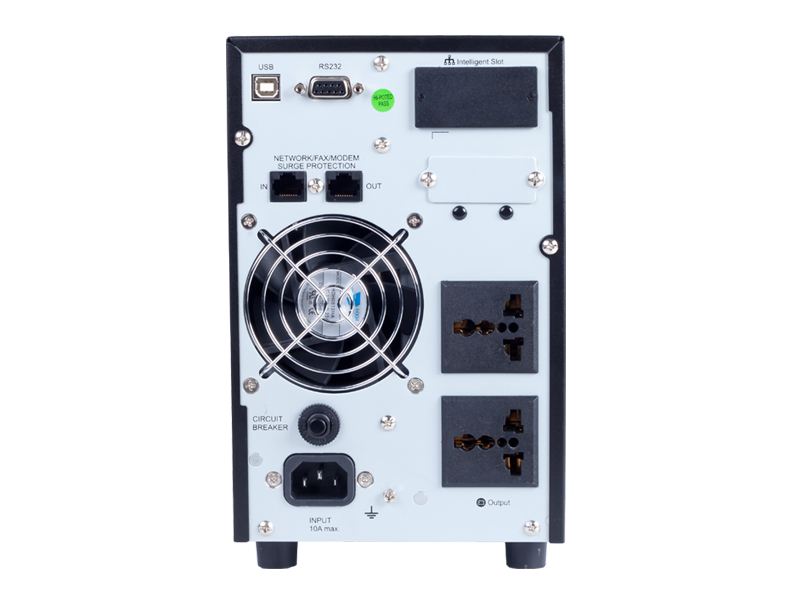

Fig 2. Uninterruptible power supply rear
UPS 1KVA Specification
| MODEL | PHT1101B-PRO | |
| CAPACITY | 1000VA / 900W | |
| Battery Voltage | 24V | |
| Size, D X W X H (mm) | 282 X 145 X 220 | |
| Net Weight (kgs) | 9.8 | |
| INPUT | ||
| Norminal Voltage | 208/220/230/240VAC | |
| Input Voltage Range | 120-300VAC (Based on load @50%) 180-300VAC (Based on load @100%) | |
| Frequency Range | 40Hz ~ 70 Hz | |
| Phase | Single Phase | |
| Power Factor | ≧ 0.99 @ nominal voltage (input voltage) | |
| OUTPUT | ||
| Output voltage | 208/220/230/240VAC | |
| AC Voltage Regulation | ± 1% (Batt. Mode) | |
| Frequency Range(Synchronized Range) | 47Hz ~ 53 Hz @ 50Hz or 57Hz ~ 63 Hz @ 60Hz | |
| Frequency Range (Batt. Mode) | 50 Hz or 60Hz ± 0.5% | |
| Overload | 105%~110%: UPS shuts down after 10 min at battery mode or transfer to bypass when the utility is normal 110%~130%: UPS shuts down after 1min at battery mode or transfer to bypass when the utility is normal >130%:UPS shuts down after 3seconds at battery mode or transfer to bypass when the utility is normal | |
| Current Crest Ratio | 3:1 | |
| Harmonic Distortion | ≦ 3 % THD (Linear Load);≦ 5% THD (Non-linear Load) | |
| Transfer Time | AC Mode to Batt. Mode | 0 ms |
| Inverter to Bypass | 4 ms | |
| Waveform (Batt. Mode) | Pure Sine Wave | |
| EFFICIENCY | ||
| AC Mode | 88% | |
| Battery Mode | 83% | |
| BATTERY | ||
| Battery Type | VRLA | |
| Battery Numbers | 2 x 12V 9AH | |
| Recharge Time | 4 hours recover to 90% capacity | |
| Charging Current | 1A | |
| Charging Voltage | 27.4VDC ± 1% | |
| ENVIRONMENT | ||
| Operation Humidity | 20-90 % RH @ 0- 40°C (non-condensing) | |
| Noise Level | Less than 50dBA @ 1 Meter | |
| MANAGEMENT | ||
| Smart RS-232 or USB | Windows® 2000/2003/XP/Vista/2008、Windows® 7/8、Linux、Unix、MAC | |
| Optional SNMP | Power management from SNMP manager and web browser | |
