Prostar UPS System

MPS20K scalable 20 kW power module

Prostar MPS20K scalable three phase modular ups system 20 kW power module that combines high AC/AC efficiency values with a compact footprint and a flexible and scalable architecture, able to reach up to 200 kVA.

20 kW power module

Thanks to its modular and scalable design as well as its hot-swappable functionality, 3 phase 20 kva power module can start with a basic configuration of just 20 kVA / 20 kW and then grow gradually as required, up to 200 kVA. this power module offers input PF >0.99 and input THDi <3 %, even when a low percentage of load is applied.

The hot-swappable Power Modules allow quick maintenance and expansion. A latch located on the front of each module fixes and locks the module in its assigned slot. Each Power Module has an LED indicator to show its operation status.

Prostar Modular UPS 20 kVA Power Module

The power module has independent hardware and controllability, able to operate and coordinate with other modules within the system. The control of power modules connected in parallel is decentralized in the single 20 kVA device (no centralized control system). The omission of the master/slave architecture, eliminates any possibility of a problem due to the failure of a single power module.

20 kW Power Module Features

  • Easy hot swap design
  • Output factor is 1 (kVA = kW)
  • Power module can be scalable system
  • Flexible modular design
  • No downtime system
  • Automatic restart of loads after UPS shutdown
  • Input Power Factor Correction
  • Predictive failure notification
  • N+1 or N+x redundant parallel
  • Save time with easy and convenient remote accessibility
  • Cold start

Power Module Details

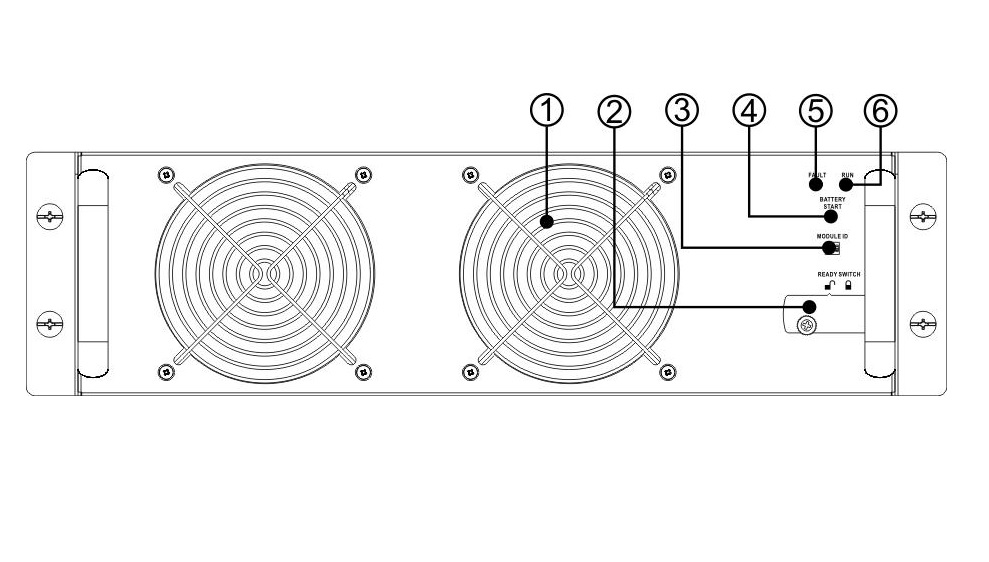

20KVA Power Module Rear Panel

Power Module Rear Panel Information

Modular UPS Power Modular Switch Setting

20 kW power module Specification

Cabinet ModelMPS20K
Maximum Capacity20KVA / 20KW
Phase3-phase in / 3-phase out
Battery Voltage240V Default, 192V/240V Selectable
Size, D X W X H (mm)650x440x132 [3U]
 Weight (Kgs)34
INPUT
Input Voltage380VAC/400VAC/415VAC (3Ph+N)
Voltage Range305~477VAC at 100% Load; 208~304VAC at <70% Load
Nominal Frequency50/60Hz(Auto Sensing)
Frequency Range40Hz~70Hz
Power Factor>0.99 @ 100% Load, >0.98 @ 50% Load
Harmonic Distortion (THDi)< 3% @ 100% Load
OUTPUT
Nominal Voltage380VAC/400VAC/415VAC (3Ph+N)
Voltage Regulation(Steady state)≦±1%Typical(Balanced Load);≦±2% Typical (Unbalanced Load)
Voltage Regulation(Transient)≦±5% Typical
Nominal Frequency50/60Hz
Frequency Range(Synchronized)46Hz~54Hz or 56Hz~64Hz
Power Factor1 (kVA=kW)
Overload Capability1 hour for 110%,10 min for 120%,1 min for 150%,200ms for >150%
Harmonic Distortion≦1.5% THD(Linear Load);≦4% THD( Non-linear Load )
EfficiencyUp to 94.5%
BATTERY/CHARGER
Nominal Voltage+/- 216V (12V x 36Pcs)
Maximum Voltage+/- 240V (12V x 40Pcs)
Minimum Voltage+/- 192V (12V x 32Pcs)
Float Charging Voltage2.25V/Cell
Boost Charging Voltage2.35V/Cell
Temperature CompensationYes
Maximum Charging Current6A for each power module (User adjustable)
STANDARDS
SafetyIEC/EN 60950-1; IEC/EN 62040-1
EMCIEC/EN 62040-2 Category C3
ENVIRONMENT
Operation Temperature0~40°C
Relative Humidity0~95% Non-condensing
Altitude<1000m for Nominal power
IP ClassIP20
