Prostar UPS System

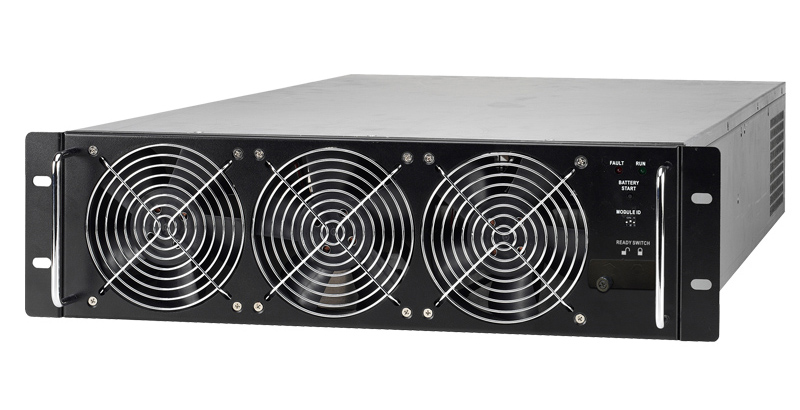

MPS30K hot swappable power module 30kw

Prostar MPS30K 3 phase modular ups system hot swappable power module 30kw combines high AC/AC efficiency values with a compact footprint and a flexible and scalable architecture, able to reach up to 300 kVA.

power module 30kw


The hot-swappable Power Modules allow quick maintenance and expansion. A latch located on the front of each module fixes and locks the module in its assigned slot. Each Power Module has an LED indicator to show its operation status.

hot swappable power module 30kw

The redundant power module has independent hardware and controllability, able to operate and coordinate with other modules within the system. The control of power modules connected in parallel is decentralized in the single 30 kVA device (no centralized control system). The omission of the master/slave architecture, eliminates any possibility of a problem due to the failure of a single power module.

Hot Swappable Power Module 30KW Features

  • Easy hot swap design
  • Output factor is 1 (kVA = kW)
  • Power module can be scalable system
  • Flexible modular design
  • No downtime system
  • Automatic restart of loads after UPS shutdown
  • Input Power Factor Correction
  • Predictive failure notification
  • Intelligent battery management
  • N+1 or N+x redundant parallel
  • Save time with easy and convenient remote accessibility
  • Repeatable and standardised assets to meet different configuration and architectural requirements

Power Module Details

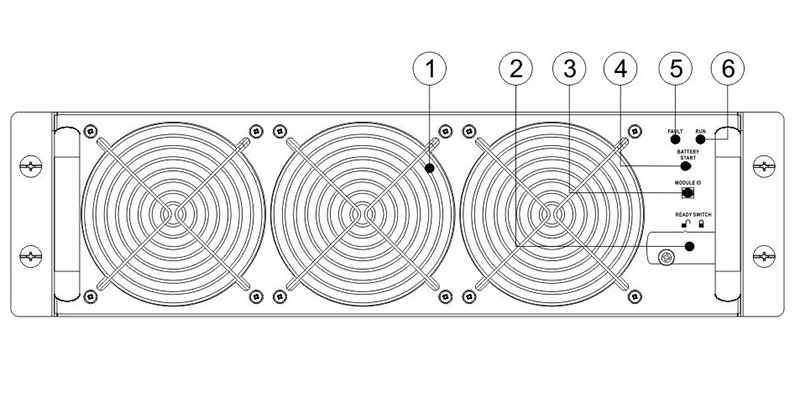

Modular UPS 30 kVA Power Modular Rear Panel

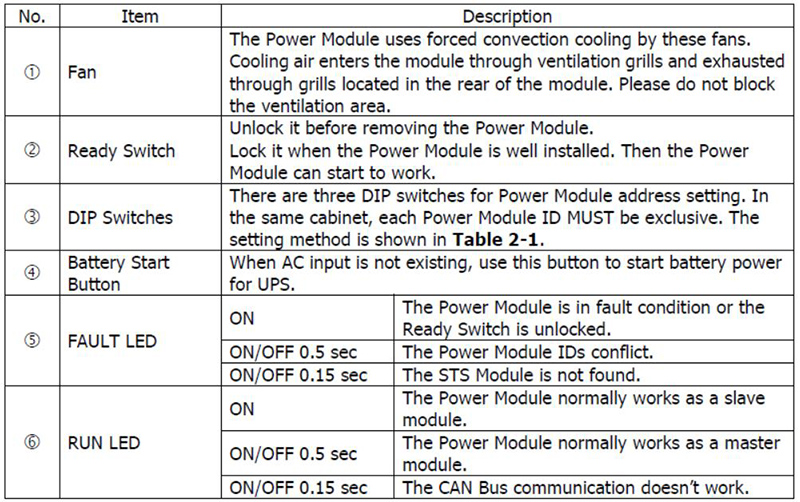

Power Module Rear Panel Information

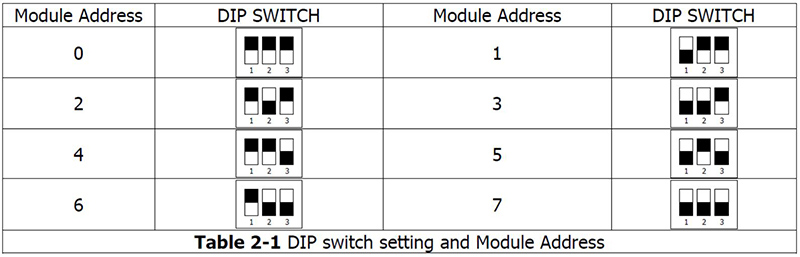

Modular UPS Power Modular Switch Setting

MPS30K hot swappable power module 30kw Specification

Cabinet ModelMPS30K
Maximum Capacity30KVA / 30KW
Phase3-phase in / 3-phase out
Battery Voltage240V Default, 192V/240V Selectable
Size, D X W X H (mm)650x440x132 [3U]
Weight (Kgs)35
INPUT
Input Voltage380VAC/400VAC/415VAC (3Ph+N)
Voltage Range305~477VAC at 100% Load; 208~304VAC at <70% Load
Nominal Frequency50/60Hz(Auto Sensing)
Frequency Range40Hz~70Hz
Power Factor>0.99 @ 100% Load, >0.98 @ 50% Load
Harmonic Distortion (THDi)< 3% @ 100% Load
OUTPUT
Nominal Voltage380VAC/400VAC/415VAC (3Ph+N)
Voltage Regulation(Steady state)≦±1%Typical(Balanced Load);≦±2% Typical (Unbalanced Load)
Voltage Regulation(Transient)≦±5% Typical
Nominal Frequency50/60Hz
Frequency Range(Synchronized)46Hz~54Hz or 56Hz~64Hz
Power Factor1 (kVA=kW)
Overload Capability1 hour for 110%,10 min for 120%,1 min for 150%,200ms for >150%
Harmonic Distortion≦1.5% THD(Linear Load);≦4% THD( Non-linear Load )
EfficiencyUp to 94.5%
BATTERY/CHARGER
Nominal Voltage+/- 216V (12V x 36Pcs)
Maximum Voltage+/- 240V (12V x 40Pcs)
Minimum Voltage+/- 192V (12V x 32Pcs)
Float Charging Voltage2.25V/Cell
Boost Charging Voltage2.35V/Cell
Temperature CompensationYes
Maximum Charging Current8A for each power module (User adjustable)
STANDARDS
SafetyIEC/EN 60950-1; IEC/EN 62040-1
EMCIEC/EN 62040-2 Category C3
ENVIRONMENT
Operation Temperature0~40°C
Relative Humidity0~95% Non-condensing
Altitude<1000m for Nominal power
IP ClassIP20
